KIT: Golden Motors HPM10 10Kw AXIAL FLUX BLDC Motor 48V/72V/96V/120V

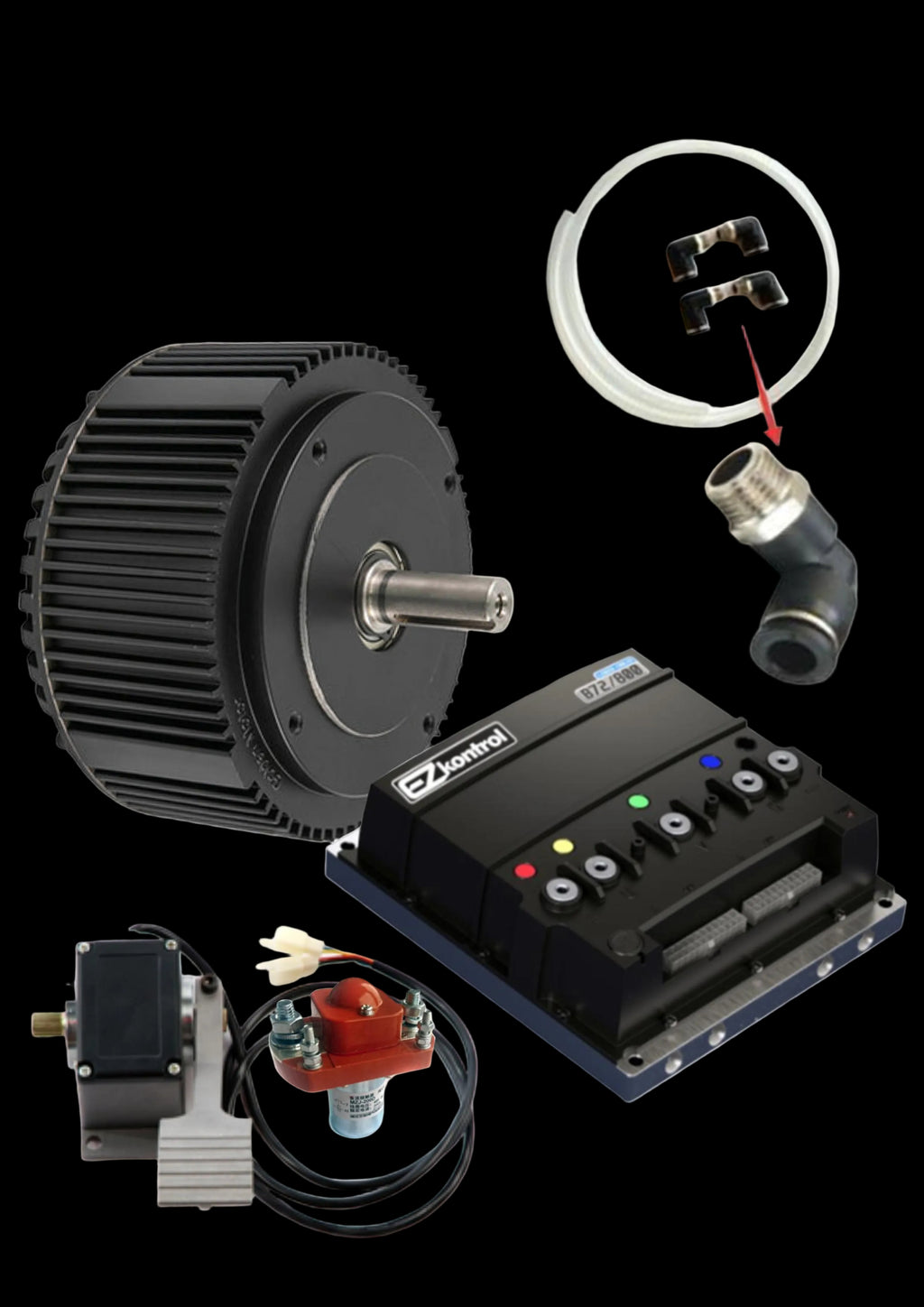

FULL HPM10 Water cooled kit included with:

■ EZ-B481000_10KW_48V// EZ-B72800_10KW_72V // EZ-B96600_10KW_96V Motor Controller

■ DC Conductor 48V/72V/96V 400A,

■ Cooling tubes & Cooling tube contactor

■ Included options: Foot throttle or Twist grip controller and control kit.

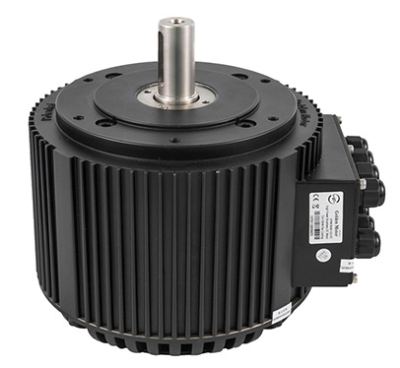

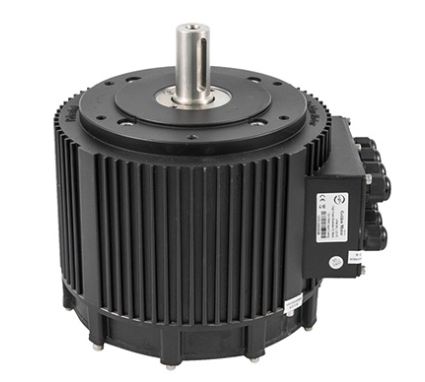

HPM10 Motor:

Compatible Voltage: 48V, 72V, 96V

Rated Current: 245A, 165A, 125A

Magnetic Field Type: Axial Flux

Speed: 2000 to 6000 RPM (customizable)

Rated Power : 10KW to 20KW (13hp to 26hp)

Rated torque : 26Nm

Peak power : 20KW ( 26hp)

Peak Torque : 85 Nm

Protection level: IP65

Diameter: Ø206mm

Height: 168mm

Shaft Diameter: Ø25mm

Net Weight: 17 KG (Air cooled), 17.7 KG (Water cooled)

Cooling system : Air / Liquid cool

Efficiency : 90% to 95%

Application : Electric Motorcycle, Go kart, machinery and boats.

■ DATA SHEET<<<

Controller:

EZ-B481000_10KW_48V

EZ-B72800_10KW_72V

EZ-B96600_10KW_96V

• High Power Capacity: This brushless direct current controller is designed for motors 8KW to 20KW, making it suitable for light duty applications.
• Built-in Bluetooth: The controller features built-in Bluetooth functionality, allowing for easy and convenient wireless communication and control.

• Versatile Usage: Ideal for use in various industries including electric car control (from high-level industries), this controller offers a wide range of applications.
• Integrated Design: The integrated design of this controller ensures seamless operation and optimal performance for your desired application

■ DATA SHEET<<<

OPTION 1.) Foot controller.

OPTION 2.) Twist grip controller and control kit.
