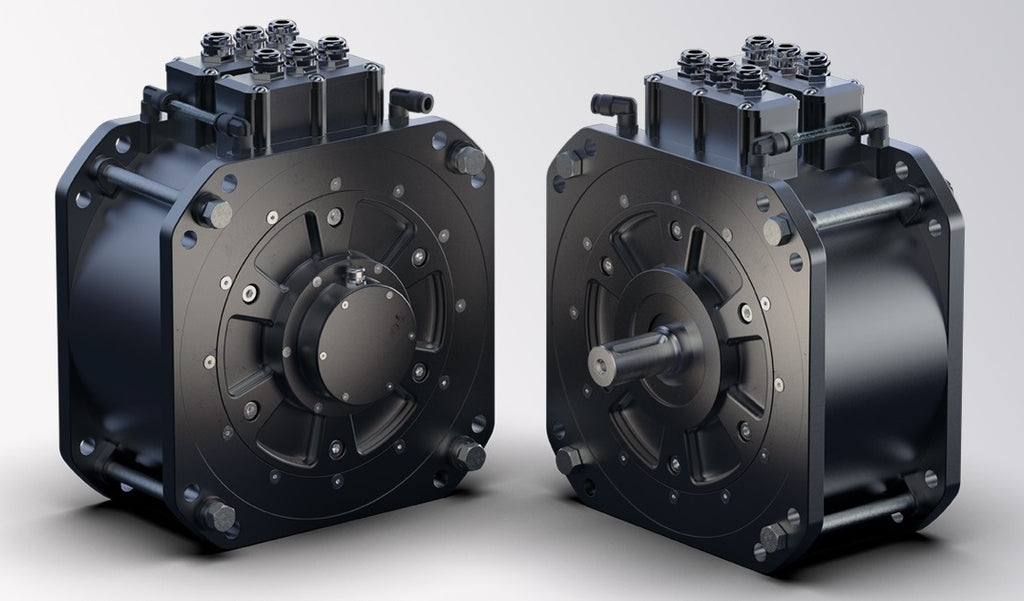

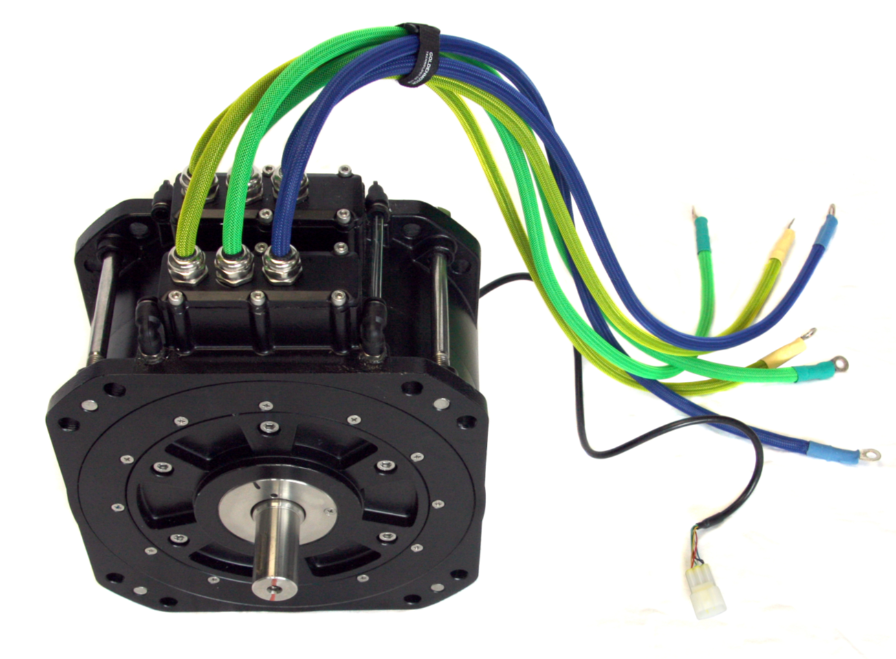

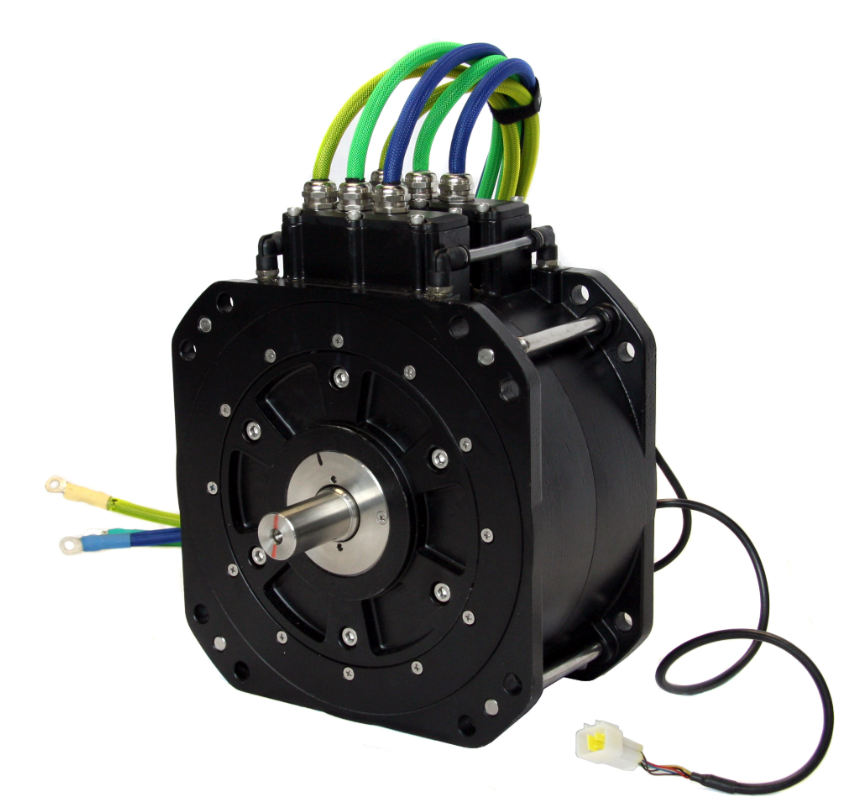

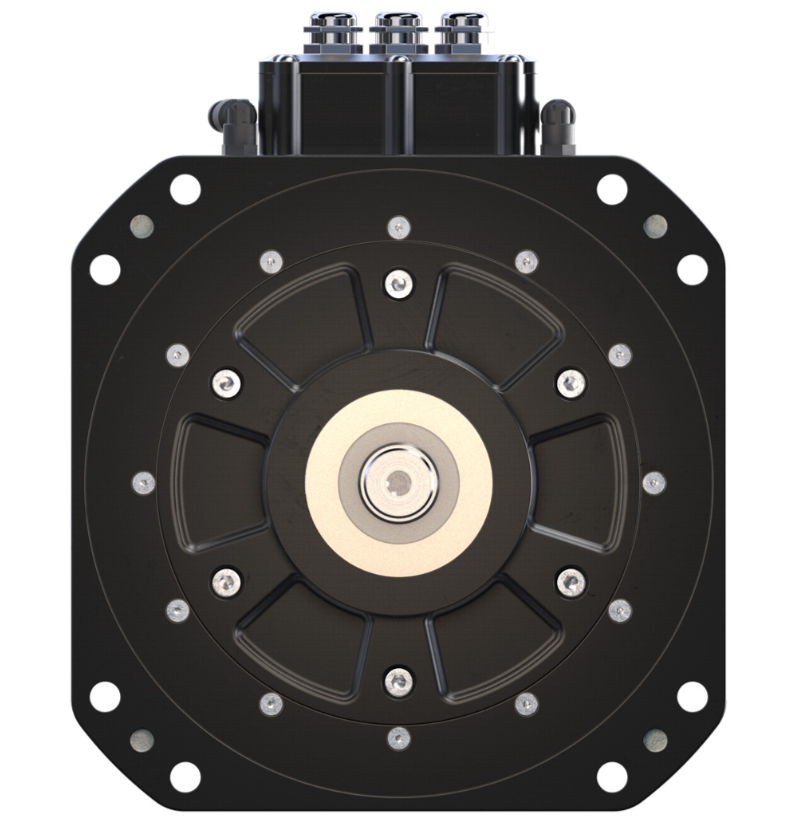

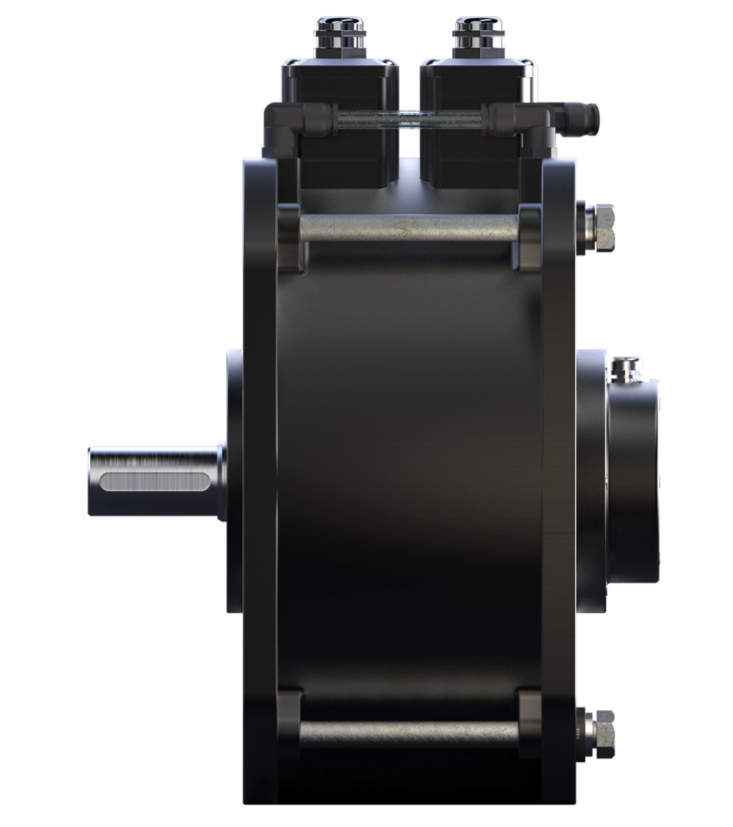

KIT: Golden Motors HPM20 20Kw AXIAL FLUX BLDC Motor 72V/96V/120V

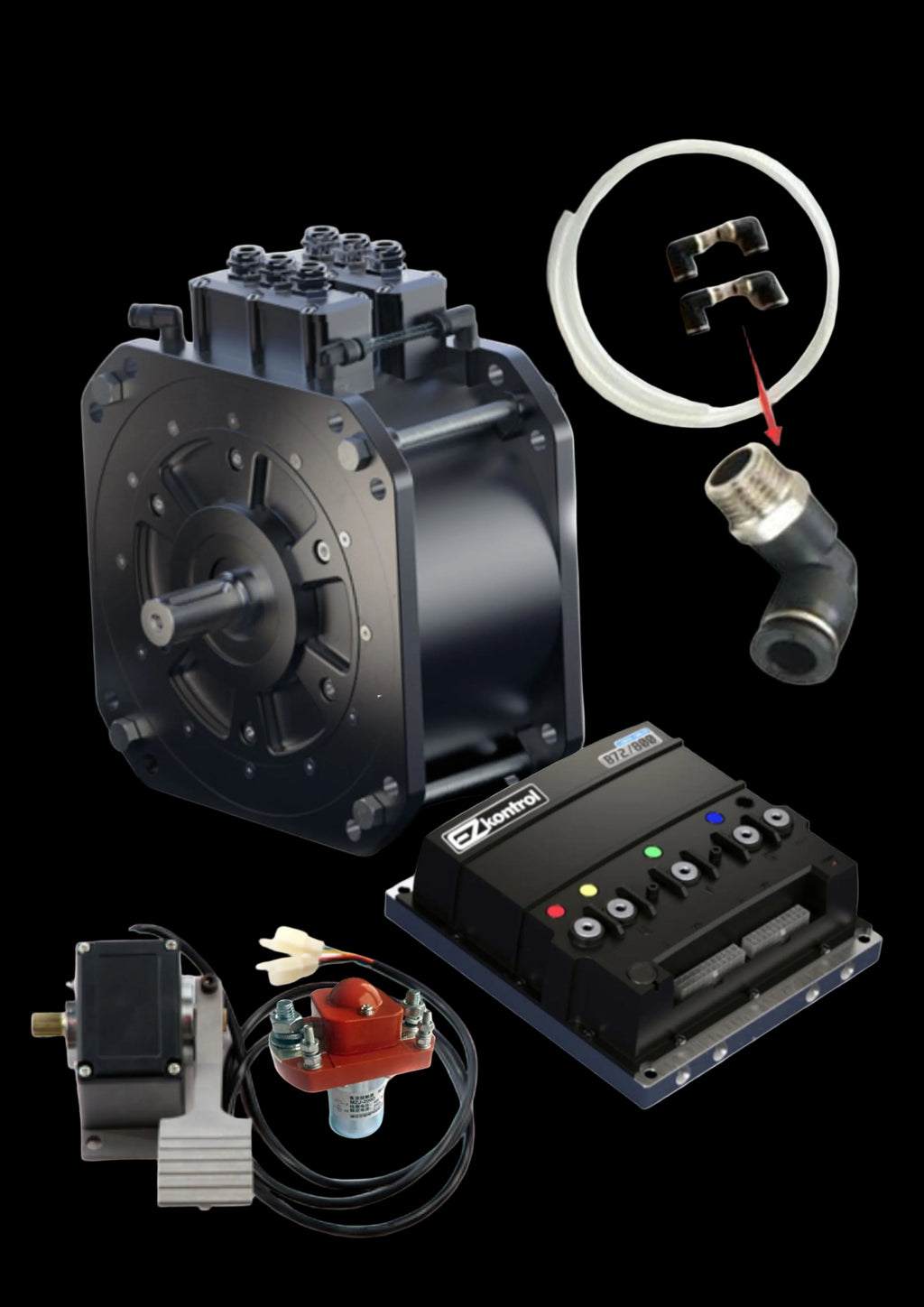

FULL HPM20 Water cooled kit included with:

■ EZ-E722000 _20KW_72V // EZ-E961500_20KW_96V // EZ-D1201200_120V Motor

    Controller

■ DC Conductor 48V/72V/96V 400A,

■ Cooling tubes & Cooling tube contactor

■ Included options: Foot throttle or Twist grip controller and control kit.

HPM20 Motor:

Compatible Voltage: 72V, 96V, 120 V

Rated Current: 325A, 245A, 196A

Magnetic Field Type: Axial Flux

Speed: 3500 to 5000 RPM

Rated Power : 20KW to 25KW (26hp to 33hp)

Rated torque : 80Nm

Peak power : 50KW ( 67hp)

Peak Torque : 160 Nm

Protection level: IP65

Diameter: Ø283mm

Height: 255mm

Shaft Diameter: Ø30mm

Net Weight: 39 KG

Cooling system : Liquid cool

Efficiency : 90% to 95%

Application : Electric Motorcycle, Go kart, machinery and boats.

■ DATA SHEET<<<

Controller:

EZ-E722000 _20KW_72V

EZ-E961500_20KW_96V

EZ-D1201200_120V

• High Power Capacity: This brushless direct current controller is designed for motors 20KW, making it suitable for light duty applications.
• Built-in Bluetooth: The controller features built-in Bluetooth functionality, allowing for easy and convenient wireless communication and control.

• Versatile Usage: Ideal for use in various industries including electric car control (from high-level industries), this controller offers a wide range of applications.
• Integrated Design: The integrated design of this controller ensures seamless operation and optimal performance for your desired application

■ DATA SHEET<<<

OPTION 1.) Foot controller.

OPTION 2.) Twist grip controller and control kit.
