KIT: Golden Motors HPM3 3Kw AXIAL FLUX BLDC Motor 48V/72V

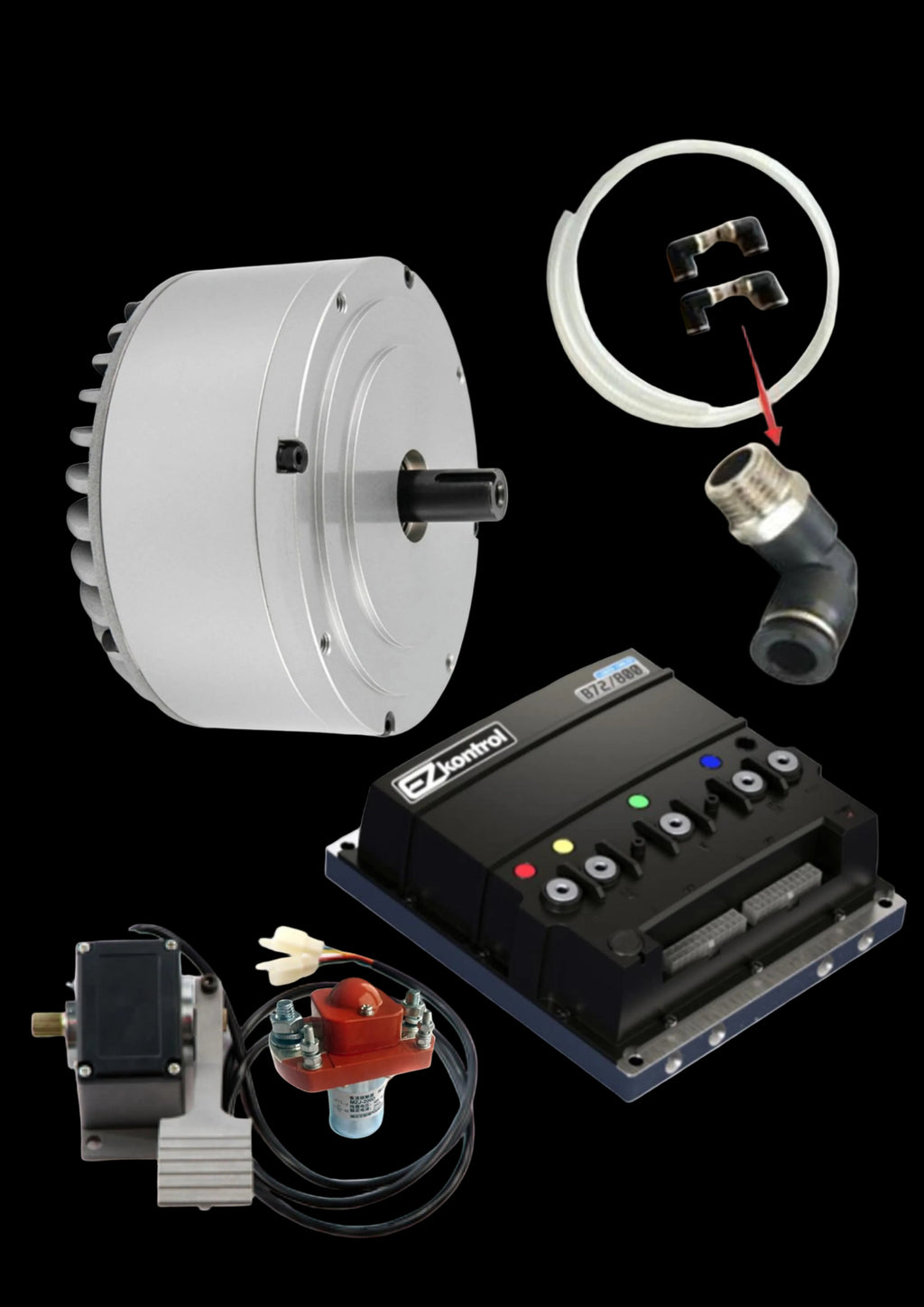

Full HPM3 Air/Water cooled kit included with:

■ EZ-A48400_3KW_48V  /  EZ-A72400_3KW_72V  Motor controller

■ DC Conductor 48V/72V/96V 400A,

■ Cooling tubes & Cooling tube contactor

■ Included options: Foot throttle or Twist grip controller and control kit.

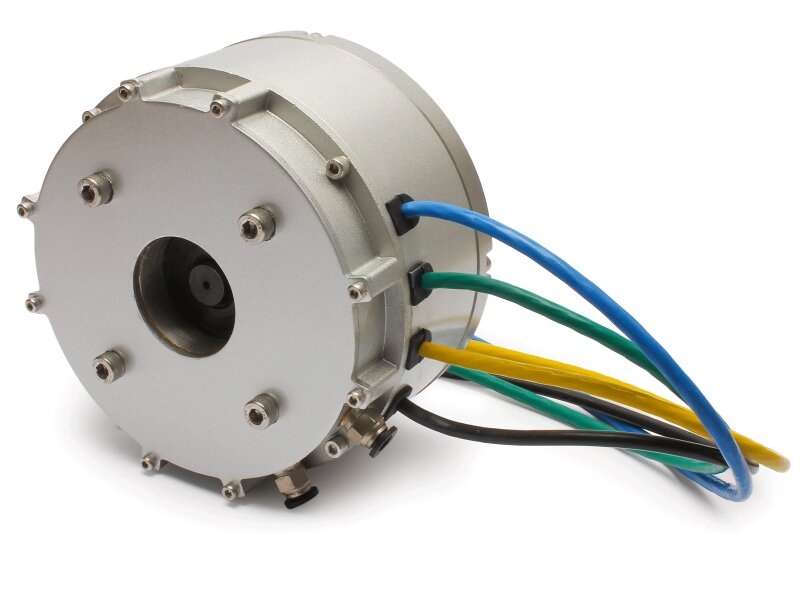

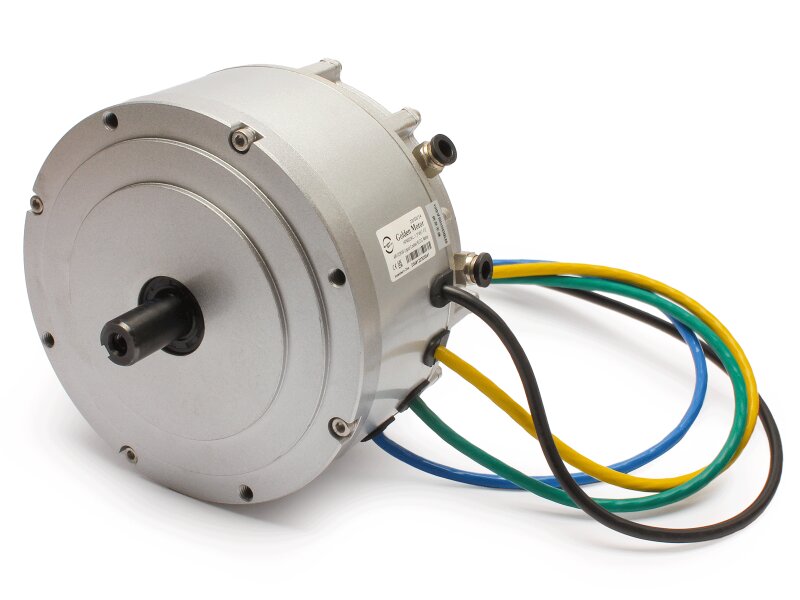

HPM3 Motor:

Compatible Voltage: 48V, 60V, 72V, 96V

Rated Current: 75A, 60A, 55A, 40A

Magnetic Field Type: Axial Flux

Speed: 3600 RPM

Rated Power : 3KW (4HP)

Rated torque : 8Nm

Peak Torque : 25Nm

Protection level: IP65

Diameter: Ø182mm

Height: Air cooled: 107mm // Liquid cooled: 110mm

Shaft diameter: Ø20mm

Cooling system : Air / Liquid cool

Efficiency : 85% to 90%

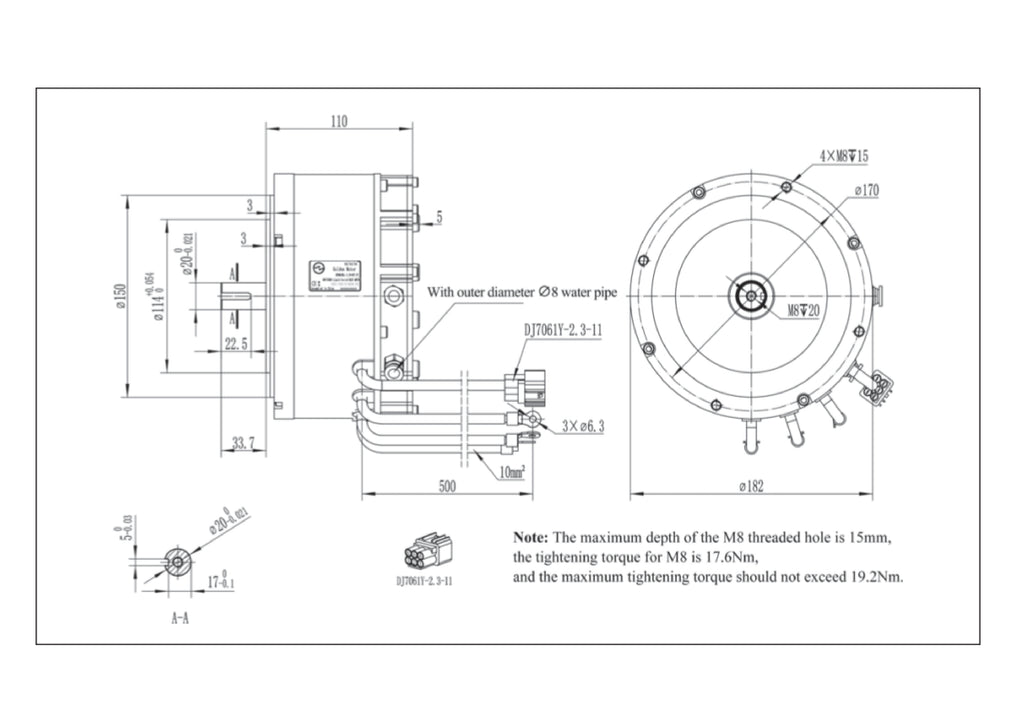

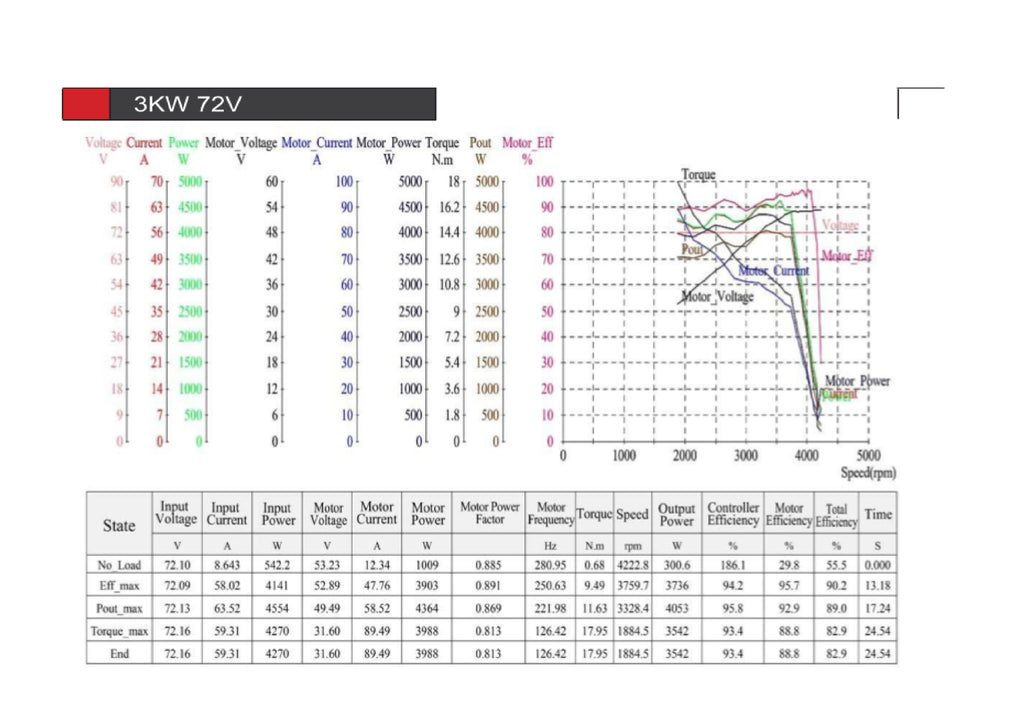

■ DATA SHEET <<<

Controller:

EZ-A48400_3KW_48V

EZ-A72400_3KW_72V

• High Power Capacity: This brushless direct current controller is designed for motors 2 to 3KW, making it suitable for light duty applications.
• Built-in Bluetooth: The controller features built-in Bluetooth functionality, allowing for easy and convenient wireless communication and control.

• Versatile Usage: Ideal for use in various industries including electric car control (from high-level industries), this controller offers a wide range of applications.
• Integrated Design: The integrated design of this controller ensures seamless operation and optimal performance for your desired application

■ DATA SHEET<<<

OPTION 1.) Foot controller.

OPTION 2.) Twist grip controller and control kit.
